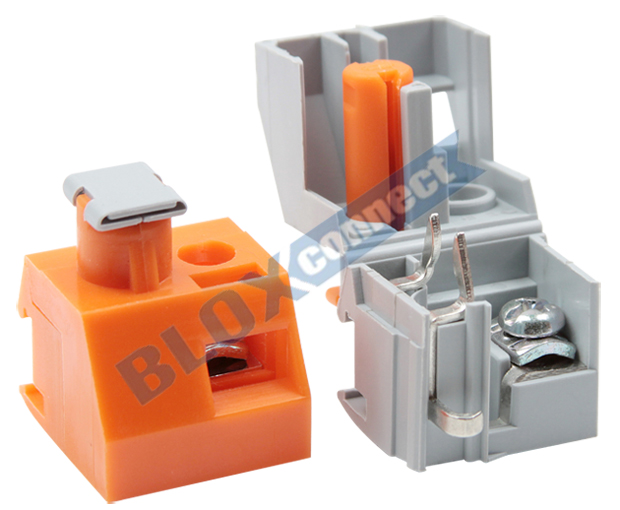

FJ-805
Specification Accessories
FJ-805

IEC 60947-7-1 Standard
  Poles
1
  Voltage / Impulse Voltage
250 V / 4 kV
  Maximum Current
6.3 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Screw Contact / Solder Contact
2 × 2.5 / 2.5 mm2
  American Wire Gauge
18 ~ 14 AWG
  Stripping Length
10~12 mm / 0.43 in
Dimensions
  Length
23.4 mm / 0.921 in
  Width
22 mm/ 0.866 in
  Height
26.5 mm / 1.04 in
