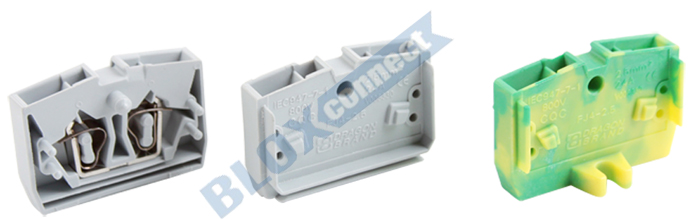

FJ4-2.5
Specification Accessories
FJ4-2.5

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
800 V / 8 kV
  Maximum Current
24 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Wire Range
0.08~2.5 mm2
  American Wire Gauge
28~12 AWG
  Wiring Type
Front-entry
  Stripping Length
8 ~ 9 mm / 0.33 in
Dimensions
  Length
32 mm / 1.26 in
  Width
6 mm / 0.236 in
  Height
22 mm / 0.867 in
Use with jumper bar
  IN
16 A
  reduce wire to
1.5 mm2 / 16 AWG
