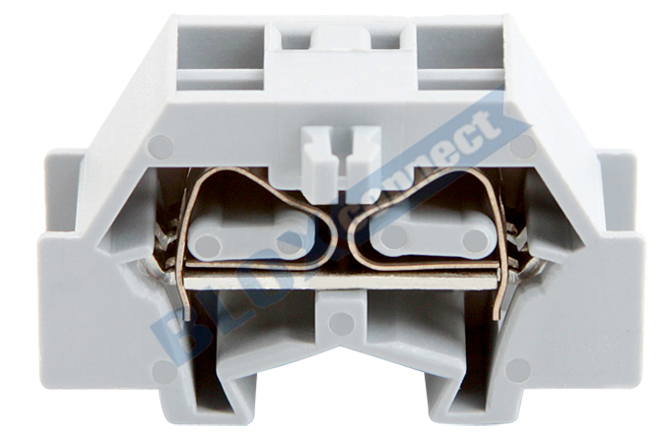

FJ5A-2.5
Specification Accessories
FJ5A-2.5

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
500 V / 6 kV
  Maximum Current
24 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Wire Range
0.08~2.5 mm2
  American Wire Gauge
28~14 AWG
  Wiring Type
Side-entry
  Stripping Length
8 ~ 9 mm / 0.33 in
Dimensions
  Length
28 mm / 1.103 in
  Width
10 mm / 0.394 in
  Height
18 mm / 0.709 in
Use with jumper bar
  IN
16 A
  reduce wire to
1.5 mm2 / 16 AWG
