Specification
Accessories |
|

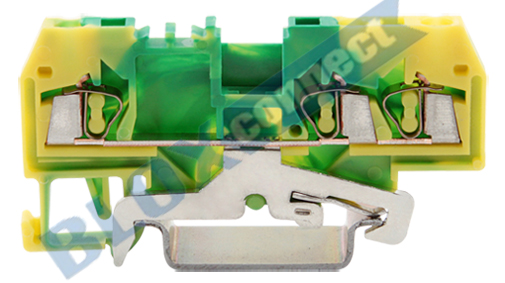

FJ1-2.5/D3
Voltage / Impulse Voltage |
8 kV |
Maximum Current |
-- |
Pollution Degree / Voltage Category
/ Material Group |
3 / III / I |
Insulating Material |
PA 66 |
Inflammability Class (acc. to UL94) |
V0 |
Wire Range |
0.08 ~ 2.5 mm2 |
American Wire Gauge |
28 ~ 12 AWG |
Wiring Type |
Front-entry |
Stripping Length |
8 ~ 9 mm / 0.33 in |
Length |
64 mm / 2.52 in |
Width |
5 mm / 0.197 in |
Height |
28 mm / 1.10 in | |
FJ1-2.5/D3
P9-2.5/3 |
End Plate |
|
T2.5 |
Adjacent Jumper |
|
H2.5 |
Alternate Jumper |
|
ZB-S |
Central Marker |
|
E/117 |
End Bracket |
|
E/119L |
|
E/119R |
|
KLM-A |
Terminal Strip Marker |
|
INSD-1 |
Insulated Screwdriver |
| |
|
