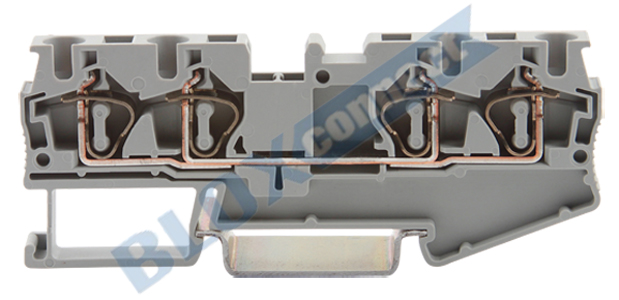

FJ6-4/4
Specification Accessories
FJ6-4/4

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
800 v / 8 kV
  Maximum Current
40 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.2 ~ 6 mm2
  Flexible Wire
0.2 ~  4 mm2
  American Wire Gauge
24 ~ 10 AWG
  Wiring Type
Front-entry
  Stripping Length
10 mm
Dimensions
  Width / Length
6.2 / 87 mm
  Height : NS35-7.5 / NS35-15
36.5 / 44 mm
  Plug Gauge (acc. to IEC 60947-1)
A4
