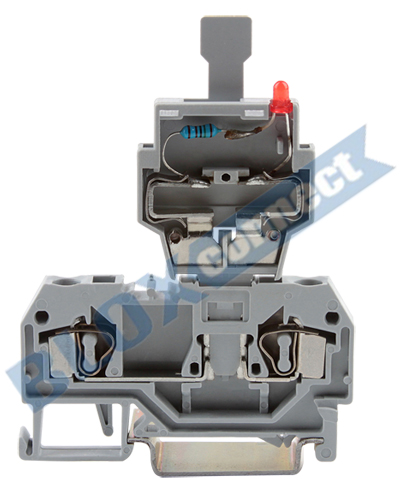

FJ1R-4
Specification
Accessories
FJ1R-4
IEC 60947-7-3 Standard
Fuse Plug
Terminal Blocks
Voltage / Impulse Voltage
250 V / -
400 V / 6 kV
Maximum Current
6.3 A
10 A
Pollution Degree / Voltage Category
/ Material Group
3 / III / I
3 / III / I
Insulating Material
PA 66
PA 66
Inflammability Class (acc. to UL94)
V0
V0
Fuse Type
G 5×20 mm
Connection Capacity
Wire Range
0.08 ~
4 mm
2
American Wire Gauge
28 ~ 12 AWG
Wiring Type
Front-entry
Stripping Length
9 ~ 10 mm / 0.37 in
Dimensions
Length
59 mm / 2.32 in
Width
6 mm
/ 0.236 in
Height
29 mm / 1.14 in
FJ1R-4
Accessories
P9/4
End Plate
ZB-S
Central Marker
E/117
End Bracket
E/119L
E/119R
KLM-A
Terminal Strip Marker
[
