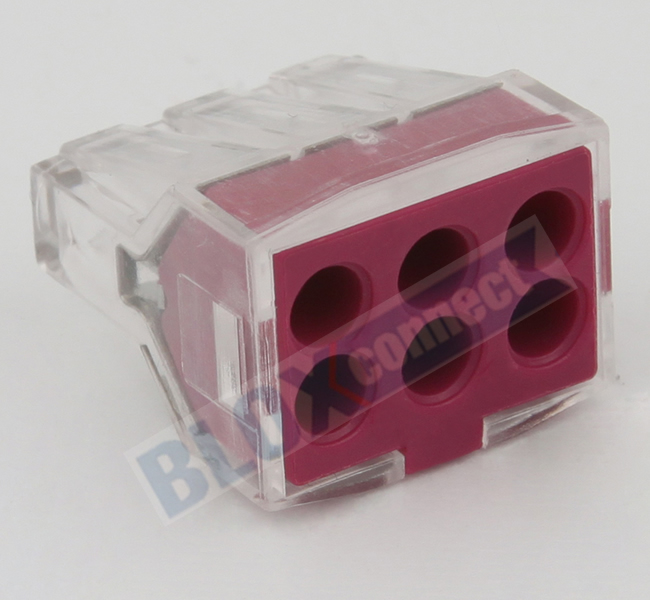

FJ-106
Specification
Accessories
FJ-106
IEC 60947-7-1 Standard
Poles
6
Voltage / Impulse Voltage
400 V / 4 kV
Maximum Current
24 A
Pollution Degree / Voltage Category
/ Material Group
3 / III / I
Insulating Material
PA 66
Inflammability Class (acc. to UL94)
V0
Connection Capacity
Rigid Wire
0.75 ~ 2.5 mm
2
Flexible Wire
1.5 ~
2.5 mm
2
American Wire Gauge
18 ~ 12 AWG
Stripping Length
12~13 mm / 0.47 in
Wiring Type
Spring Clamping
Dimensions
Length
19.1 mm / 0.752 in
Width
19 mm
/ 0.512 in
Height
13.1 mm / 0.516 in
[
