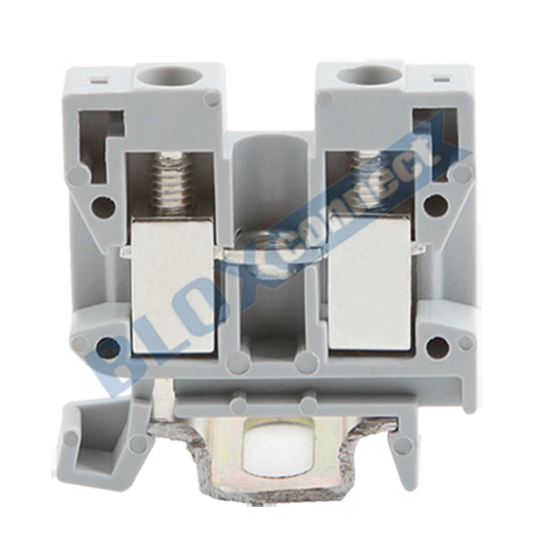

FBK2.5/E
Specification Accessories
FBK2.5/E

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
250 V / 4 kV
  Rated Current / Maximum Current
24 / 24 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.2 ~ 2.5 mm2
  Flexible Wire
0.2 ~ 2.5 mm2
  American Wire Gauge
24 ~ 14 AWG
  Stripping Length
7 mm
Dimensions
  Width / Length
5.2 / 24.5 mm
  Height : (NS15)
26.5 mm
  Screw Thread
M3
  Plug Gauge (acc. to IEC 60947-1)
A3
  Tightening Torque
0.6 ~ 0.8 Nm
