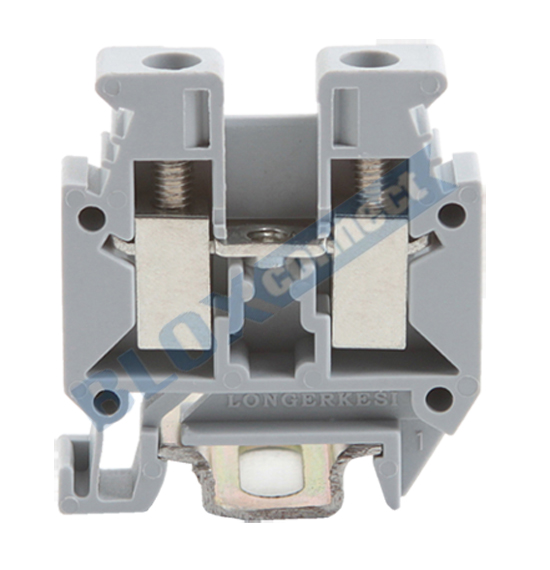

FBK5/E-Z

Specification Accessories
FBK5/E-Z

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
500 V / 6 kV
  Rated Current / Maximum Current
41 / 41 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.2 ~ 6 mm2
  Flexible Wire
0.2 ~ 4 mm2
  American Wire Gauge
24 ~ 10 AWG
  Stripping Length
8 mm
Dimensions
  Width / Length
6.2 / 28 mm
  Height : (NS15)
32 mm
  Screw Thread
M3
  Plug Gauge (acc. to IEC 60947-1)
A4
  Tightening Torque
0.5 ~ 0.6 Nm
