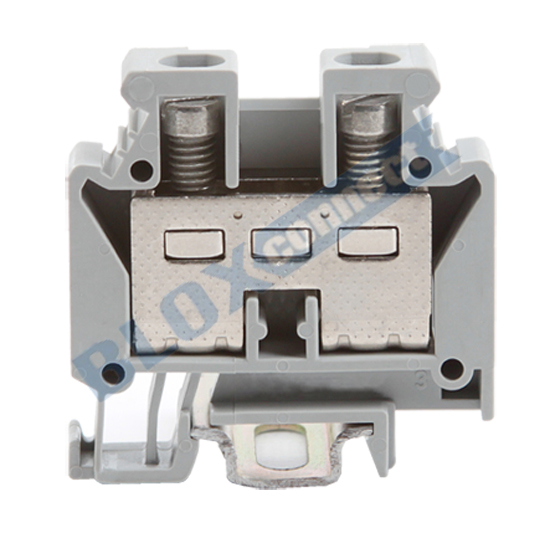

FBK6/E
Specification Accessories
FBK6/E

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
500 V / 6 kV
  Rated Current / Maximum Current
57 / 57 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.5 ~ 10 mm2
  Flexible Wire
0.5 ~ 6 mm2
  American Wire Gauge
20 ~ 8 AWG
  Stripping Length
10 mm
Dimensions
  Width / Length
8.2 / 35 mm
  Height : (NS15)
36 mm
  Screw Thread
M4
  Plug Gauge (acc. to IEC 60947-1)
A5
  Tightening Torque
1.5 ~ 1.8 Nm
