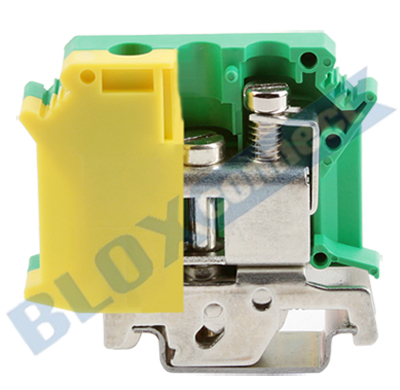

FJ35N/D Low
Specification Accessories
FJ35N/D Low

IEC 60947-7-2 Standard
  Voltage / Impulse Voltage
- / 8 kV
  Rated Current / Maximum Current
125 / 125 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.75 ~ 35 mm2
  Flexible Wire
0.75 ~ 35 mm2
  American Wire Gauge
18 ~ 2 AWG
  Stripping Length
16 mm
Dimensions
  Width / Length
15.2 / 55 mm
  Height : NS35-7.5 / NS35-15 / NS32
51 / 58.5 / 56 mm
  Clamping Screw:
  Screw Thread / Tightening Torque
M6 / 3.2~3.7 Nm
  Fixing Screw:
  Screw Thread / Tightening Torque
M5 / 2.5~3 Nm
  Plug Gauge (acc. to IEC 60947-1)
B9
