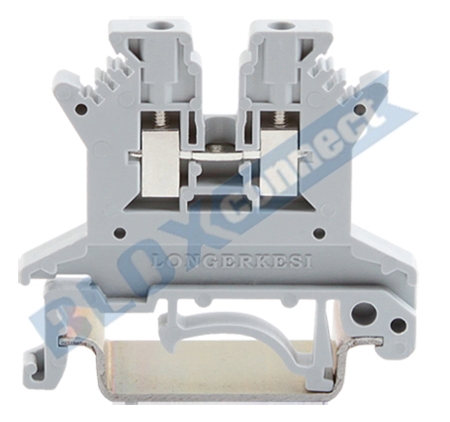

FJ1.5N
Specification Accessories
FJ1.5N

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
500 V / 6 kV
  Rated Current / Maximum Current
17.5 / 17.5 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.14 ~ 1.5 mm2
  Flexible Wire
0.14 ~ 1.5 mm2
  American Wire Gauge
26 ~ 16 AWG
  Stripping Length
7 mm
Dimensions
  Width / Length
4.2 / 42.5 mm
  Height : NS35-7.5 / NS35-15 / NS32
42 / 49.5 / 47 mm
  Screw Thread
M2
  Plug Gauge (acc. to IEC 60947-1)
A1
  Tightening Torque
0.22 ~ 0.25 Nm
