Specification
Accessories |
|

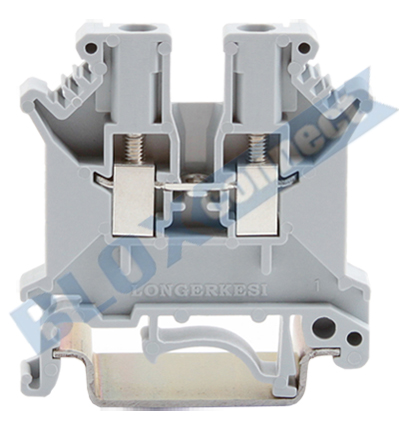

FJ3N
Voltage / Impulse Voltage |
800 V / 8 kV |
Rated Current / Maximum Current |
32 / 32 A |
Pollution Degree / Voltage Category
/ Material Group |
3 / III / I |
Insulating Material |
PA 66 |
Inflammability Class (acc. to UL94) |
V0 |
Rigid Wire |
0.2 ~ 4 mm2 |
Flexible Wire |
0.2 ~ 2.5 mm2 |
American Wire Gauge |
24 ~ 12 AWG |
Stripping Length |
8 mm |
Width / Length |
5.2 / 42.5 mm |
Height : NS35-7.5 / NS35-15 / NS32 |
47 / 54.5 / 52 mm |
Screw Thread |
M3 |
Plug Gauge (acc. to IEC 60947-1) |
A3 |
Tightening Torque |
0.6~0.8 Nm | |
FJ3N
D-FJ4/10 |
End Plate |
|
TS-K |
Small Partition |

|
ATP-FJ |
Partition Plate |
|
FBRI 10-5N |
Fixed Bridge |
|
EBL 10-5 |
Insertion Bridge |

|
ZB5 |
Marking Tag |

|
FJBE/A |
Marking Terminal Blocks |

|
FJBE/D |

|
E/FJ |
End Bracket |
|
E/FJ1 |
|
KLM-A |
Terminal Strip Marker |
| |
|
