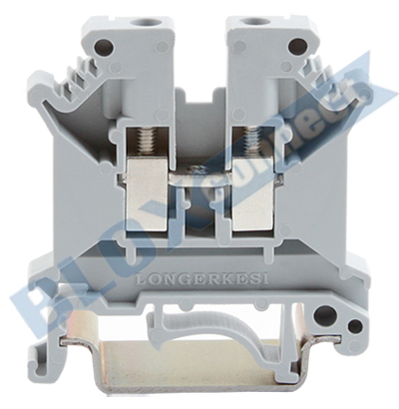

FJ5N
Specification Accessories
FJ5N

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
800 V / 8 kV
  Rated Current / Maximum Current
41 / 41 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.2 ~ 6 mm2
  Flexible Wire
0.2 ~ 4 mm2
  American Wire Gauge
24 ~ 10 AWG
  Stripping Length
8 mm
Dimensions
  Width / Length
6.2 / 42.5 mm
  Height : NS35-7.5 / NS35-15 / NS32
47 / 54.5 / 52 mm
  Screw Thread
M3
  Plug Gauge (acc. to IEC 60947-1)
A4
  Tightening Torque
0.6~0.8 Nm
