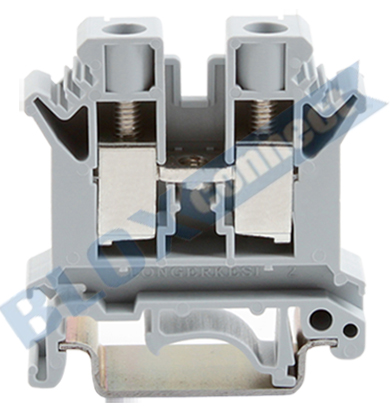

FJ10N
Specification Accessories
FJ10N

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
800 V / 8 kV
  Rated Current / Maximum Current
76 / 76 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.5 ~ 16 mm2
  Flexible Wire
0.5 ~ 10 mm2
  American Wire Gauge
20 ~ 6 AWG
  Stripping Length
10 mm
Dimensions
  Width / Length
10.2 / 42.5 mm
  Height : NS35-7.5 / NS35-15 / NS32
47 / 54.5 / 52 mm
  Screw Thread
M4
  Plug Gauge (acc. to IEC 60947-1)
B6
  Tightening Torque
1.5~1.8 Nm
