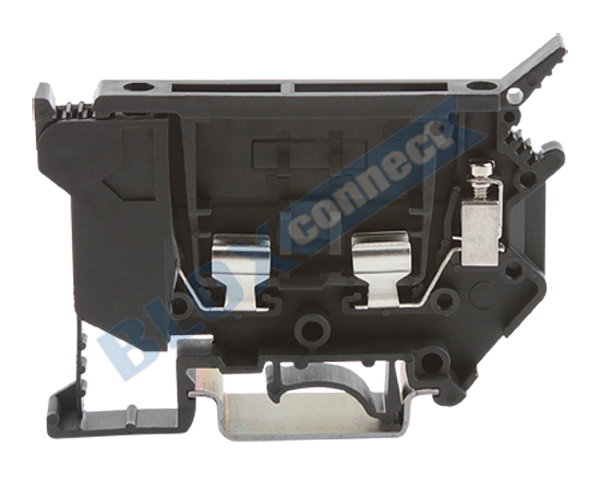

FJ-5HESI
Specification Accessories
FJ-5HESI

IEC 60947-7-3 Standard
  Voltage / Impulse Voltage
800 V / 6 kV
  Rated Current / Maximum Current
6.3 / 6.3 A
  Current / Voltage (with fuse)
1) A  /  1) V
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA66
  Inflammability Class (acc. to UL94)
V0
  Fuse Type
G/ 5×20 / 5×25 / 5×30
Connection Capacity
  Rigid Wire
0.2 ~ 4 mm2
  Flexible Wire
0.2 ~ 4 mm2
  American Wire Gauge
24 ~ 12 AWG
  Stripping Length
8 mm
Dimensions
  Width / Length
8.2 / 72.5 mm
  Height : NS35-7.5 / NS35-15 / NS32
56.5 / 64 / 61.5 mm
  Screw Thread / Tightening Torque
M3 / 0.5~0.8 Nm
  Plug Gauge (acc. to IEC 60947-1)
A4
