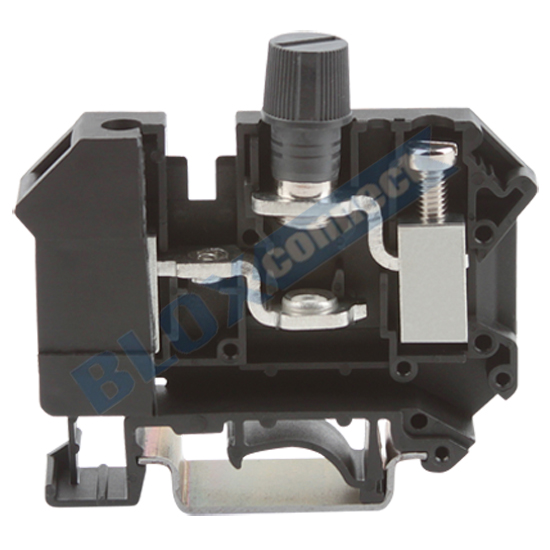

FJ-10DREHSI
Specification Accessories
FJ-10DREHSI

IEC 60947-7-3 Standard
  Voltage / Impulse Voltage
800 V / 4 kV
  Rated Current / Maximum Current
10 / 10 A
  Current / Voltage (with fuse)
2) A  /  2) V
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA66
  Inflammability Class (acc. to UL94)
V0
  Fuse Type
G/ 5×20 / 5×25 / 6.3×32
Connection Capacity
  Rigid Wire
0.5 ~ 16 mm2
  Flexible Wire
0.5 ~16 mm2
  American Wire Gauge
20 ~ 6 AWG
  Stripping Length
11 mm
Dimensions
  Width / Length
12 / 62 mm
  Height : NS35-7.5 / NS35-15 / NS32
59 / 66.5 / 64 mm
  Screw Thread / Tightening Torque
M4 / 1.5~1.8 Nm
  Plug Gauge (acc. to IEC 60947-1)
B6
