FJTK/S
Specification Accessories

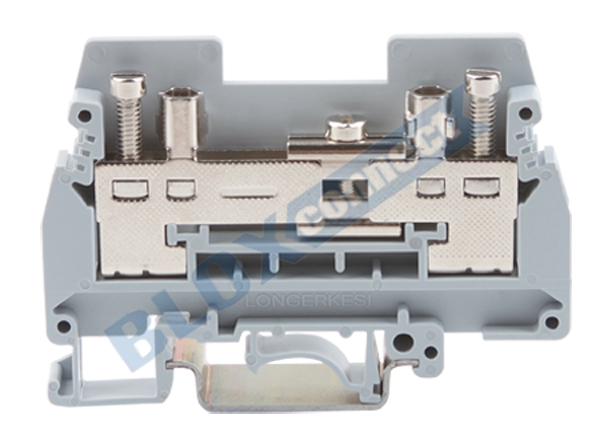

FJTK/S

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
400 V / 6 kV
  Rated Current / Maximum Current
57 / 57 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.5 ~ 10 mm2
  Flexible Wire
0.5 ~ 6 mm2
  American Wire Gauge
20 ~ 8 AWG
  Stripping Length
13 mm
Dimensions
  Width / Length
8.2  / 72 mm
  Height : NS35-7.5 / NS35-15 / NS32
51.5 / 59 / 56 mm
  Clamping Screw:
  Screw Thread / Tightening Torque
M4 / 1.2~1.5 Nm
  Disconnecting Screw:
  Screw Thread / Tightening Torque
M3 / 0.6~0.8 Nm
  Plug Gauge (acc. to IEC 60947-1)
A5
