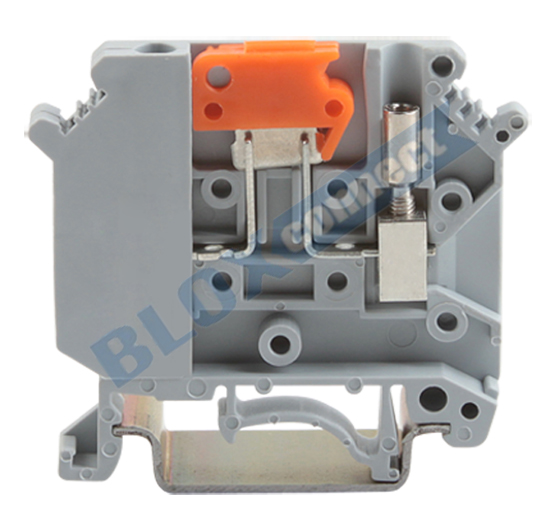

FJ-5MTK-P/P
Specification Accessories
FJ-5MTK-P/P

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
800 V / 6 kV
  Rated Current / Maximum Current
16 / 16 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
0.2 ~ 4 mm2
  Flexible Wire
0.2 ~ 4 mm2
  American Wire Gauge
24 ~ 12 AWG
  Stripping Length
8 mm
Dimensions
  Width / Length
6.2 / 51 mm
  Height : NS35-7.5 / NS35-15 / NS32
58.5 / 66 / 63.5 mm
  Clamping Screw:
  Screw Thread / Tightening Torque
M3 / 0.5~0.6 Nm
  Disconnecting Screw:
  Screw Thread / Tightening Torque
-
  Plug Gauge (acc. to IEC 60947-1)
A4
