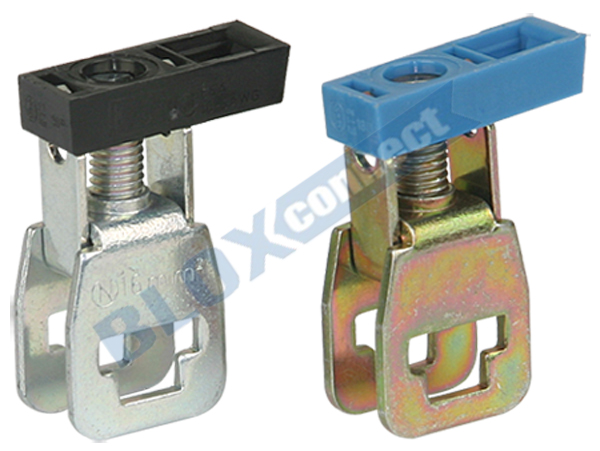

FKG16
Specification
Accessories
FKG16
IEC / EN Standard
Voltage / Impulse Voltage
-
Rated Current /
Maximum Current
76 /
76 A
Pollution Degree / Voltage Category
/ Material Group
3 / III / I
Insulating Material
PA66
Inflammability Class (acc. to UL94)
V0
Connection Capacity
Rigid Wire
1.5 ~ 16 mm
2
Flexible Wire
1.5 ~ 16 mm
2
American Wire Gauge
16 ~ 6 AWG
Stripping Length
16 mm
Dimensions
Width
/ Length
10
/ 23.5 mm
Height : (NS15)
35 mm
Screw Thread
M5
Plug Gauge (acc. to IEC 60947-1)
B6
Tightening Torque
2.5 ~ 3 Nm
FKG16
Accessories
ZB6
Marking Tag
AB/00
Neutral Busbar
AB/01
Support
AB/02
Double Support
AB/03
Support
[
