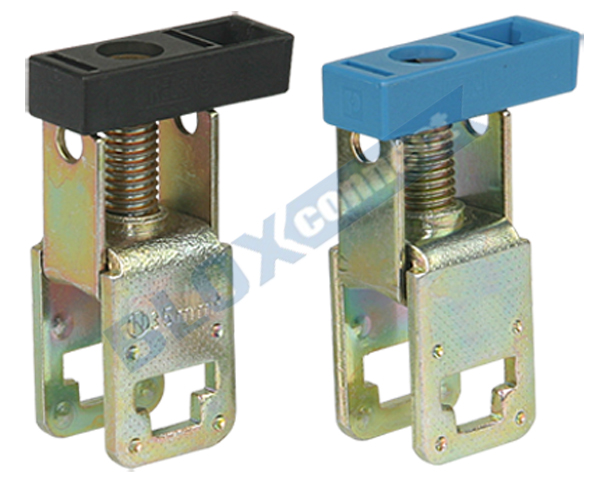

FKG35
Specification
Accessories
FKG35
IEC / EN Standard
Voltage / Impulse Voltage
-
Rated Current /
Maximum Current
125 /
125 A
Pollution Degree / Voltage Category
/ Material Group
3 / III / I
Insulating Material
PA66
Inflammability Class (acc. to UL94)
V0
Connection Capacity
Rigid Wire
2.5 ~ 35 mm
2
Flexible Wire
2.5 ~ 25 mm
2
American Wire Gauge
14 ~ 2 AWG
Stripping Length
16 mm
Dimensions
Width
/ Length
14.3
/ 27 mm
Height : (NS15)
44 mm
Screw Thread
M6
Plug Gauge (acc. to IEC 60947-1)
B9
Tightening Torque
3.2~3.7 Nm
FKG35
Accessories
ZB6
Marking Tag
AB/00
Neutral Busbar
AB/01
Support
AB/02
Double Support
AB/03
Support
[
