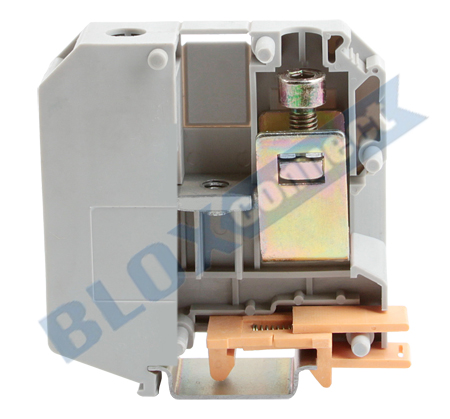

FJ50
Specification Accessories
FJ50

IEC 60947-7-1 Standard
  Voltage / Impulse Voltage
1000 V / 8 kV
  Rated Current / Maximum Current
150 / 150 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
16 ~ 50 mm2
  Flexible Wire
25 ~ 50 mm2
  American Wire Gauge
6 ~ 0 AWG
  Stripping Length
24 mm
Dimensions
  Width / Length
20 / 70.5 mm
  Height : NS35-7.5 / NS35-15 / NS32
- / 83.5 / 81.5 mm
  Screw Thread
M6
  Plug Gauge (acc. to IEC 60947-1)
B10
  Tightening Torque
6~8 Nm
