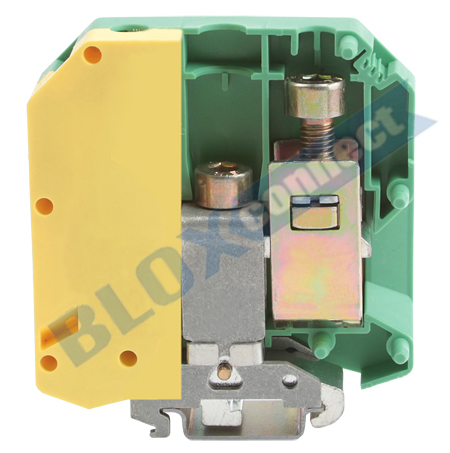

FJ95N/D
Specification Accessories
FJ95N/D

IEC 60947-7-2 Standard
  Voltage / Impulse Voltage
- / 8 kV
  Rated Current / Maximum Current
232 /232 A
  Pollution Degree / Voltage Category
  / Material Group
3 / III / I
  Insulating Material
PA 66
  Inflammability Class (acc. to UL94)
V0
Connection Capacity
  Rigid Wire
25 ~ 95 mm2
  Flexible Wire
35 ~ 95 mm2
  American Wire Gauge
4 ~ 000 AWG
  Stripping Length
33 mm
Dimensions
  Width / Length
25/ 83 mm
  Height : NS35-7.5 / NS35-15 / NS32
- / 99 / 96.5 mm
  Clamping Screw:
  Screw Thread / Tightening Torque
M8 / 15~20 Nm
  Fixing Screw:
  Screw Thread / Tightening Torque
M8 / 15~20 Nm
  Plug Gauge (acc. to IEC 60947-1)
B12
