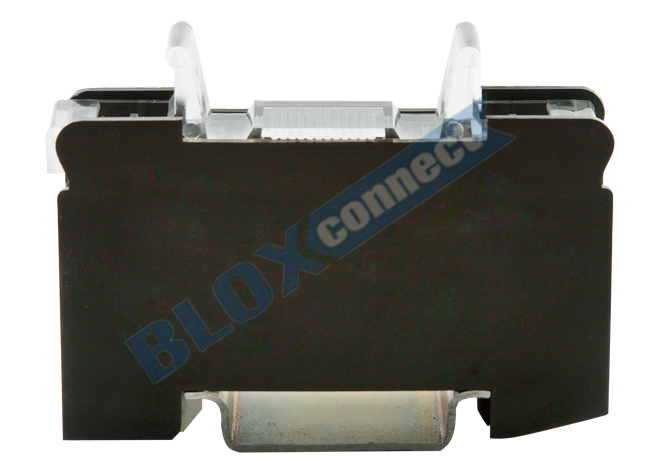

FJF111S
Specification
Accessories
FJF111S
IEC 60947-7-3 Standard
Voltage /
Current
600 V /
10 A
Wire Sizes
5.5 mm
2
American Wire Gauge
18 ~ 10 AWG
JIS C 2811 Standard
Voltage / Current
600 V / 10 A
Wire Sizes
5.5 mm
2
Dimensions
Width
/ Length / Height
16
/ 63 / 47 mm
Height : DIN35 / C30
49 / - mm
Screw Thread
M4
Tightening Torque
1.4 ~ 2.0 Nm
Fuse Rated Voltage / Current
250 V / 1、3、5 A
Fuse Type 1
61(6.35×31.8mm)
Fuse Type 2
60(6.40×30.0mm)
Applicable Terminals
1.25-4 ~5.5-4
Max. Fix Number of Terminals
2
Blown Fuse Indicator
Neon (100~200V AC)
FJF111S
Accessories
BNL8
End Stop
[
