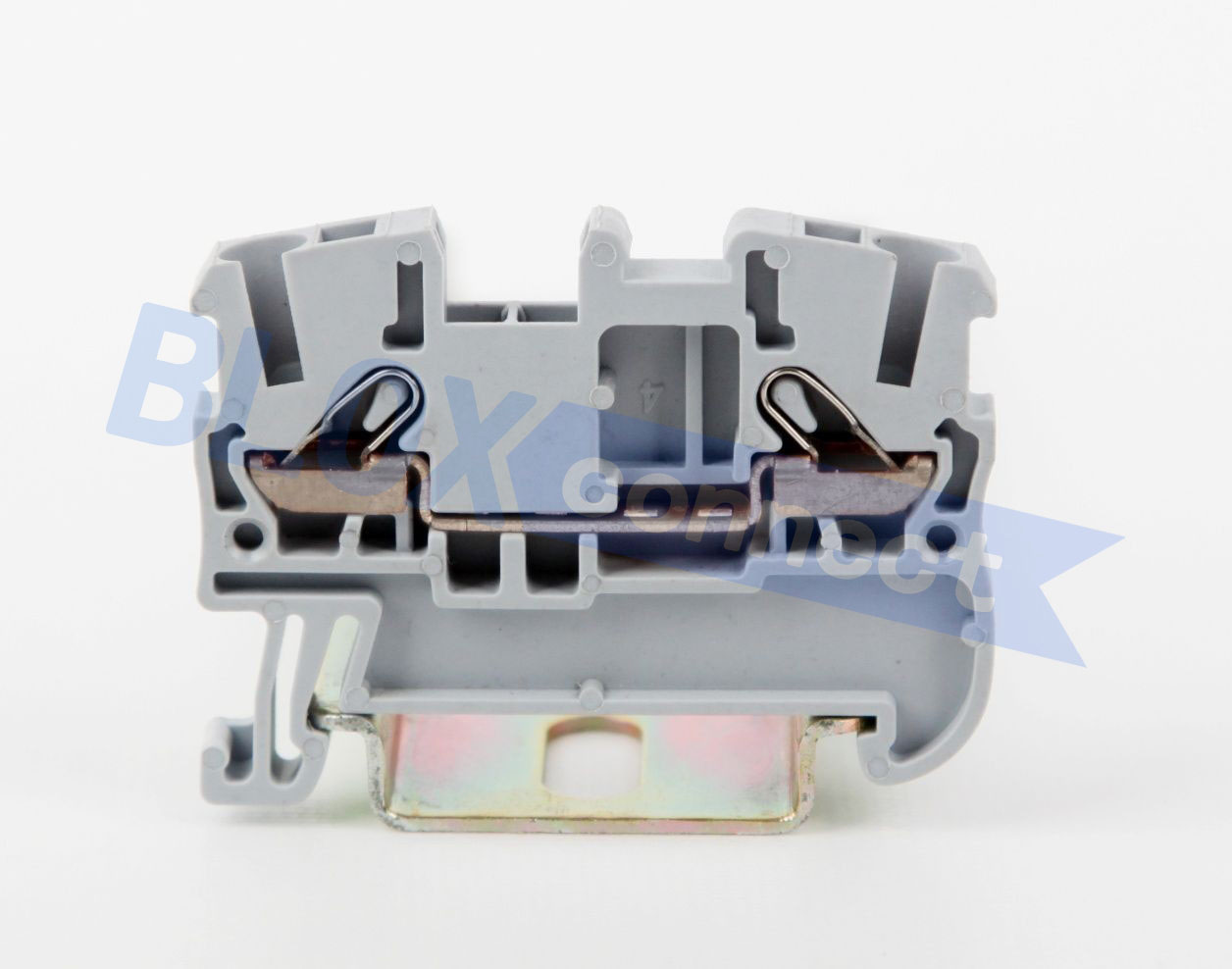

FJ7-2.5
Specification
Accessories
(
FJ7-2.5
)
IEC 60947-7-1 Standard
Voltage / Impulse Voltage
800 V / 8 kV
Maximum Current
24 A
Pollution Degree / Voltage Category
/ Material Group
3 / III / I
Insulating Material
PA 66
Inflammability Class (acc. to UL94)
V0
Connection Capacity
Wire
Range
0.08 ~
2.5 mm
2
American Wire Gauge
28 ~ 12 AWG
Wiring Type
Front-entry
Stripping Length
8 ~ 9 mm / 0.33 in
Dimensions
Length
49 mm
Width
5.2 mm
Height
31.5 mm
Accessories
P7/2.5
End Plate
FJS2-5
Adjacent Jumper
ZB5
Central Marker
ZBF5
External Marker
E/117
End Bracket
E/119L
E/119R
KLM-A
Terminal Strip Marker
INSD-1
Insulated Screwdriver
[
