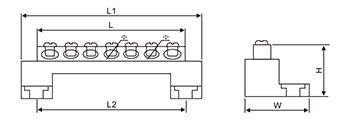

Spec.: Brass Size
L: Brass Length
（FKG-U Series）
|
Item No. |
Holes |
Spec. |
L |
L1 |
L2 |
H |
W |
Φ |
Screw Size |
|
mm |
|
FKG05S-U |
5 |
6×9 |
42.5 |
73 |
60 |
37 |
26 |
6.5 |
M5×8 |
|
FKG07S-U |
7 |
6×9 |
58.5 |
73 |
60 |
37 |
26 |
6.5 |
M5×8 |
|
FKG10S-U |
10 |
6×9 |
82.5 |
103 |
90 |
37 |
26 |
6.5 |
M5×8 |
|
FKG05L-U |
5 |
8×12 |
52 |
73 |
60 |
40 |
26 |
7 |
M5×10 |
|
FKG07L-U |
7 |
8×12 |
70 |
73 |
60 |
40 |
26 |
7 |
M5×10 |
|
FKG10L-U |
10 |
8×12 |
97 |
103 |
90 |
40 |
26 |
7 |
M5×10 | |
